Assignment 5
Assignments for this week! We did some SolidWorks exercises, came up with some invention ideas, and sketched some objects (again).

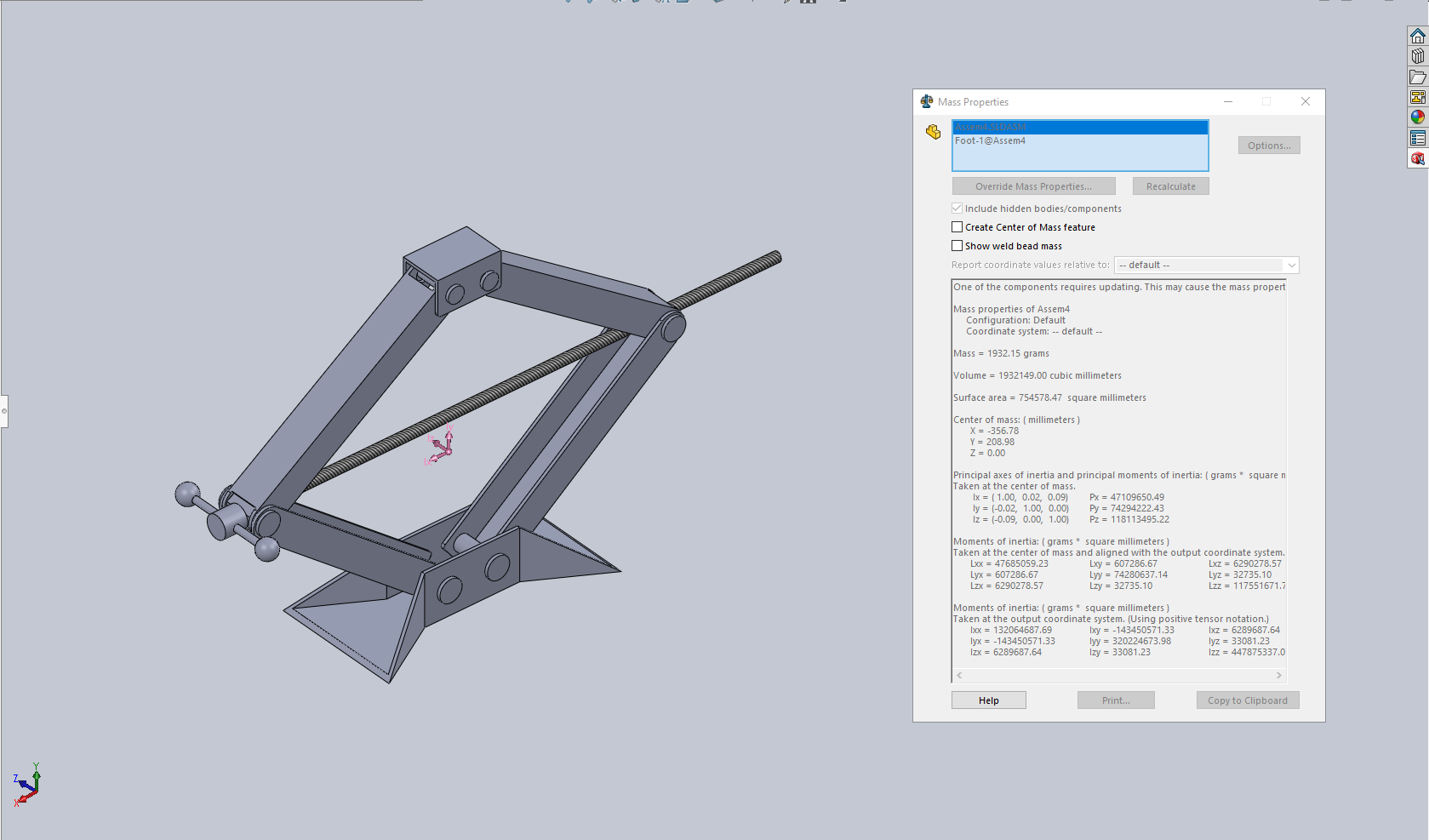

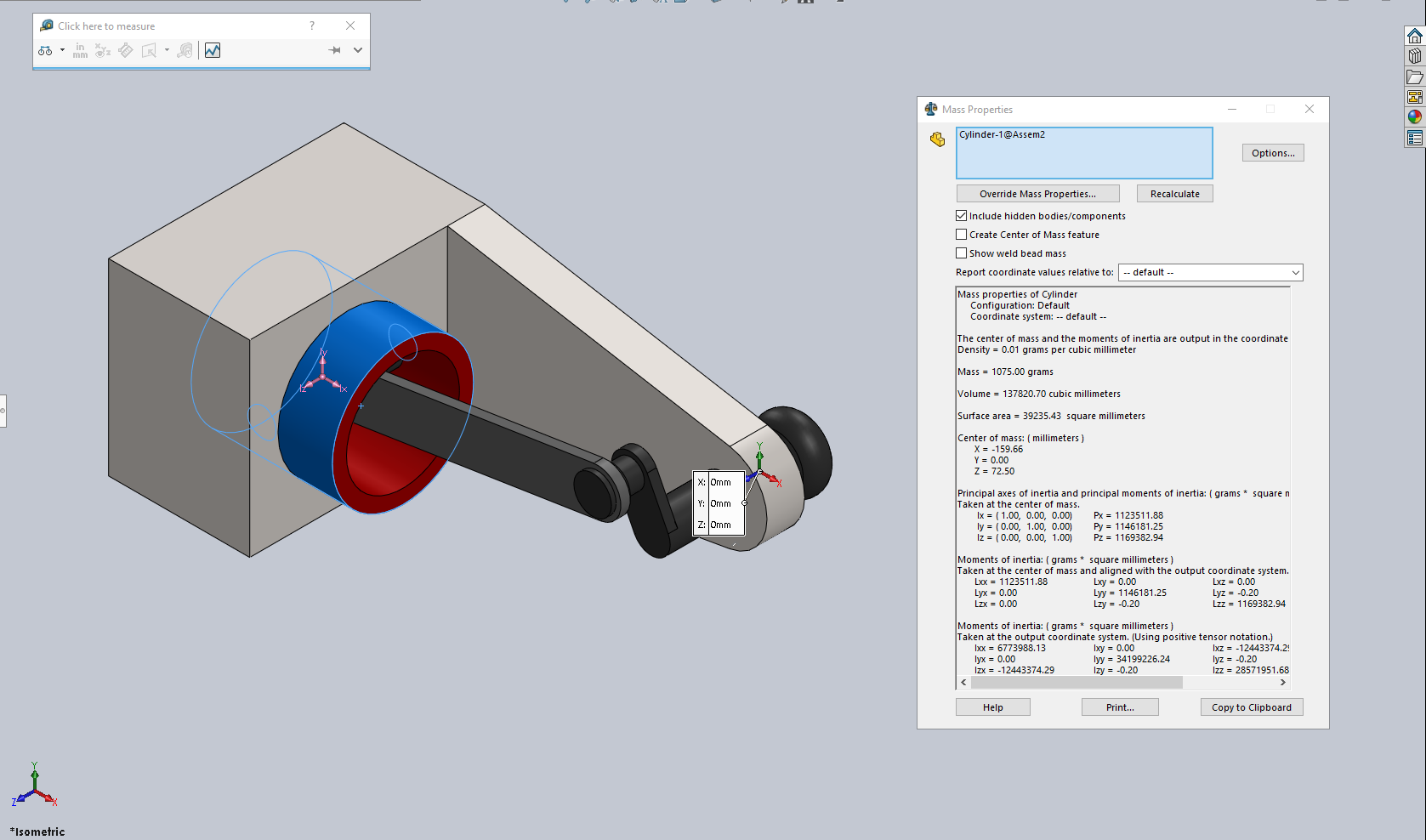

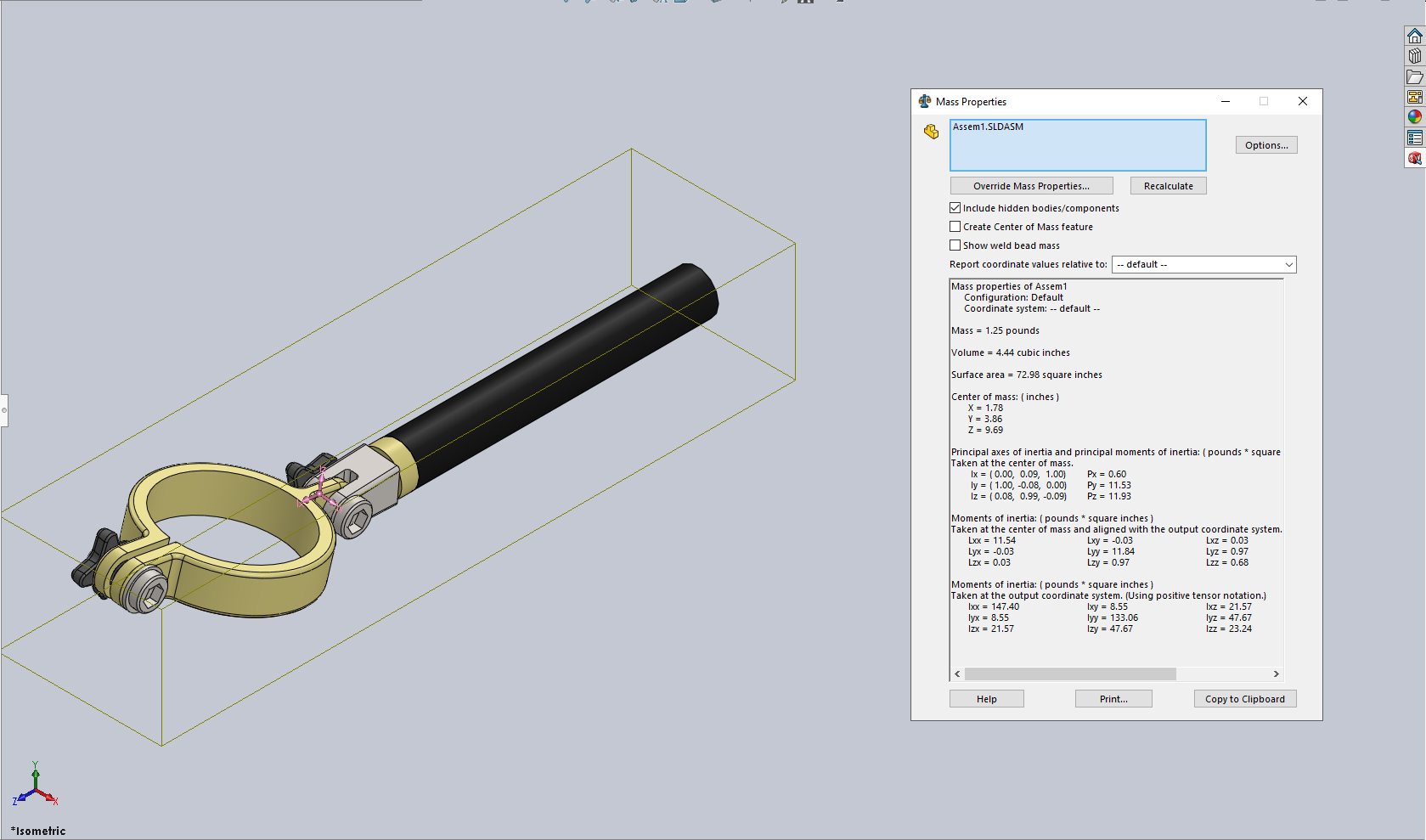

Solidworks Screenshots
Pugh Chart
| Chart | Water Dispenser Alarm Clock | Rolling Alarm Clock | Streamlined Toothbrush Stand | Digital Checklist Device | Random Wheel | Auto-Coffee Brewer | Spare Change Counter | Auto-Bed | Smart Mister | Trail Mixer |
|---|---|---|---|---|---|---|---|---|---|---|
| Low-maintenance | S | + | + | 0 | + | 0 | + | 0 | 0 | + |
| Streamlines Routine | S | - | 0 | 0 | - | 0 | - | 0 | - | 0 |
| Small/Lightweight | S | + | 0 | + | + | 0 | 0 | - | + | 0 |
| Resistant to abuse | S | + | 0 | 0 | + | 0 | + | - | 0 | 0 |
| Totals | 0 | 2 | 1 | 1 | 2 | 0 | 1 | -2 | 0 | 1 |

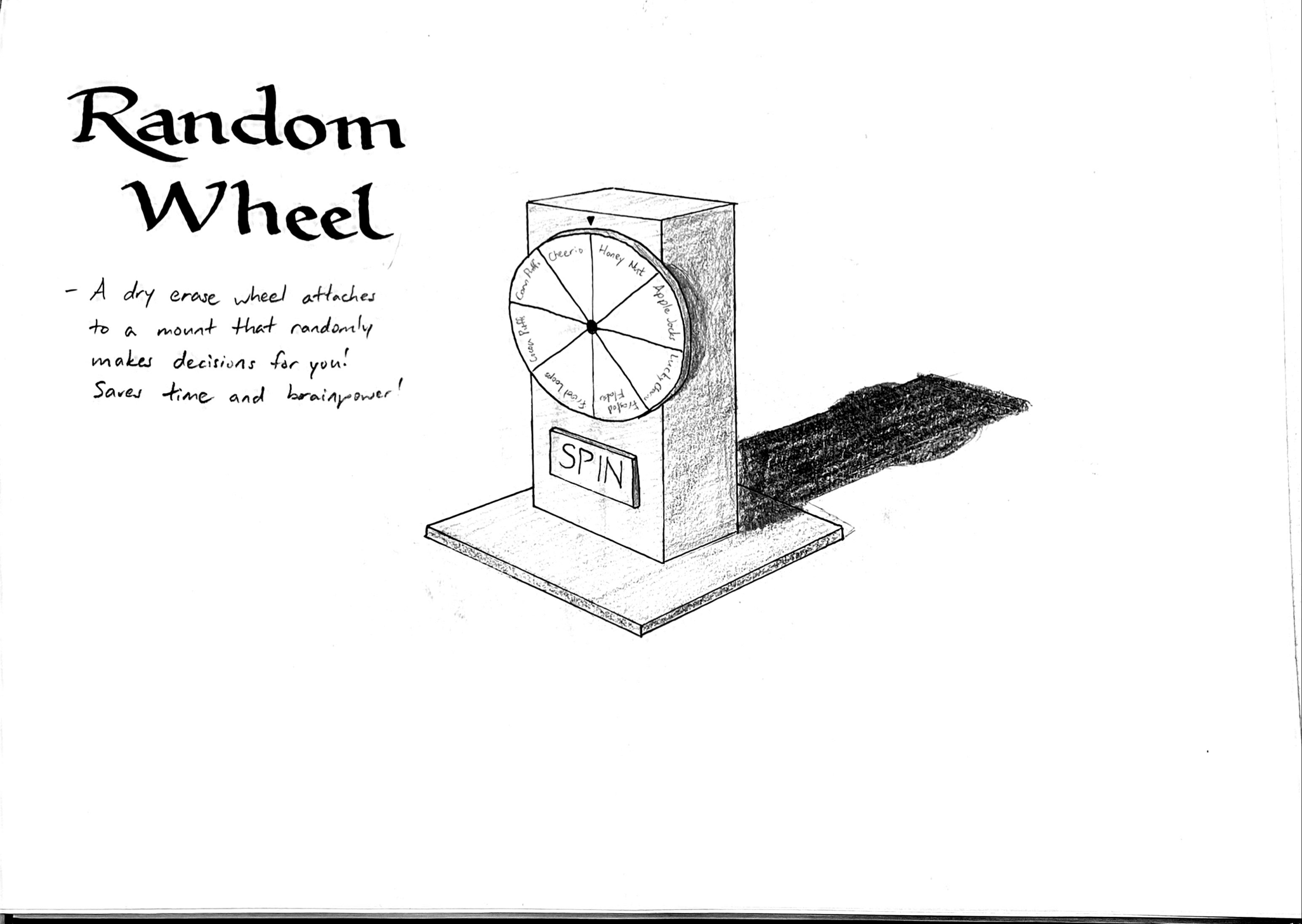

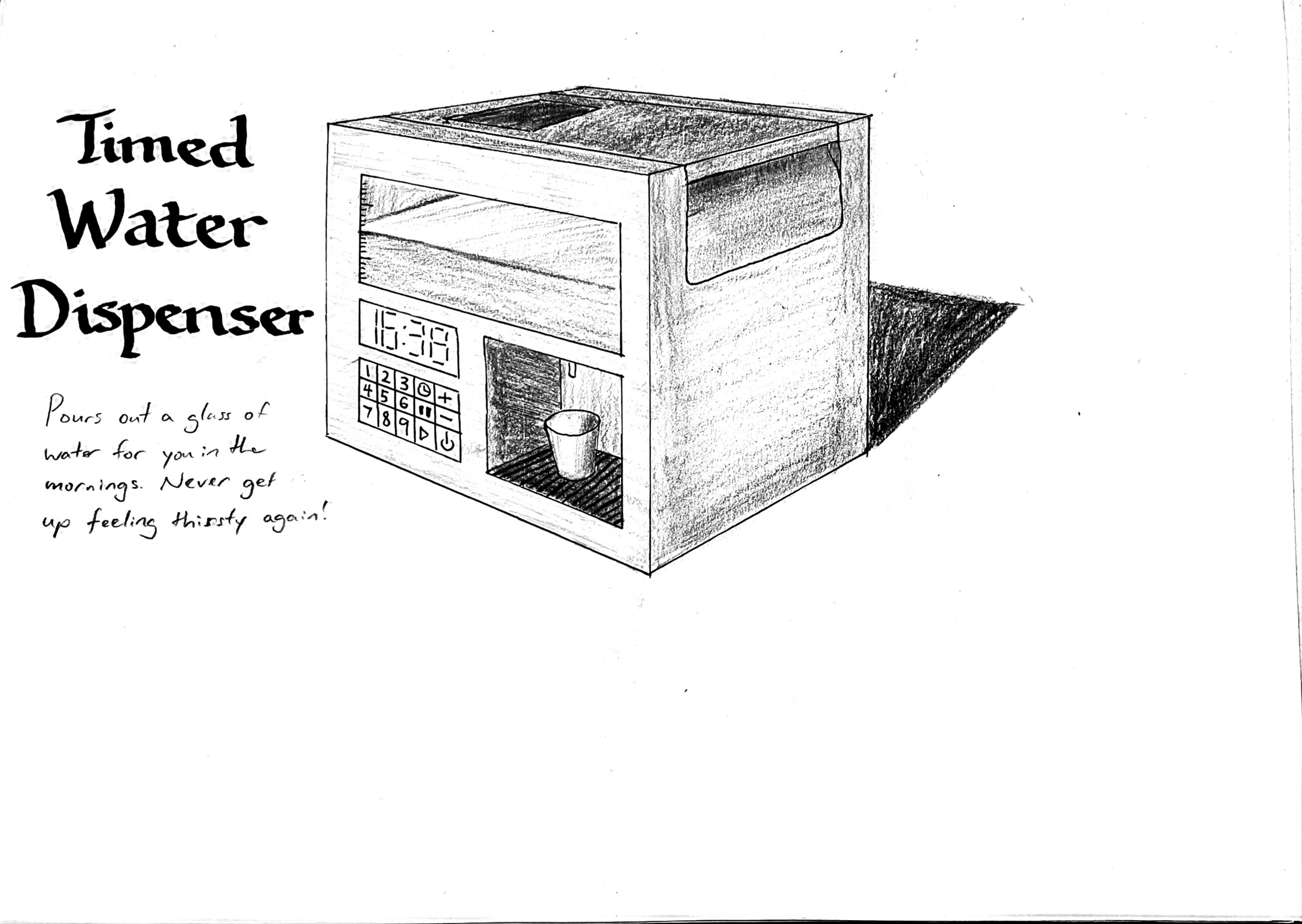

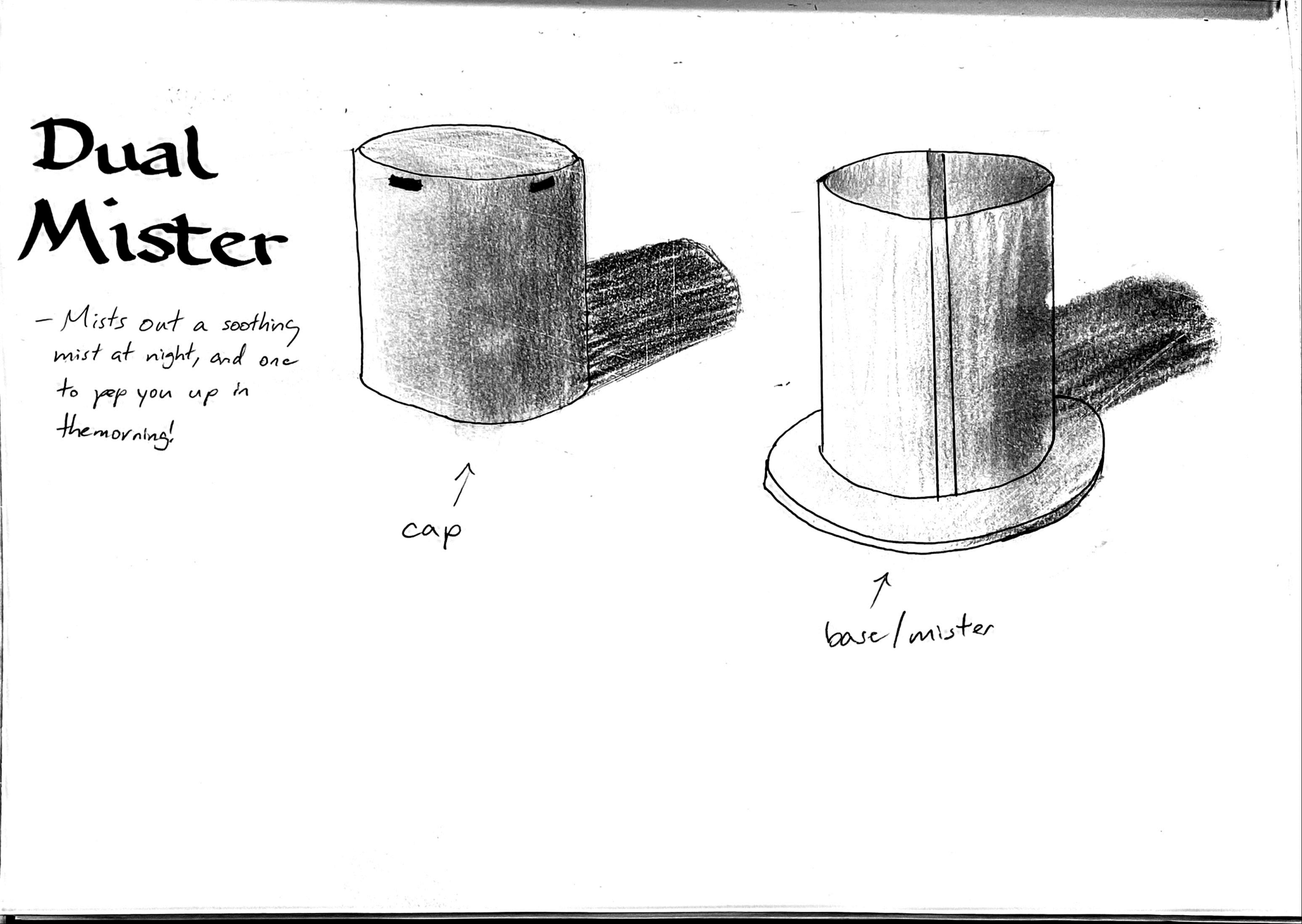

Sketching
